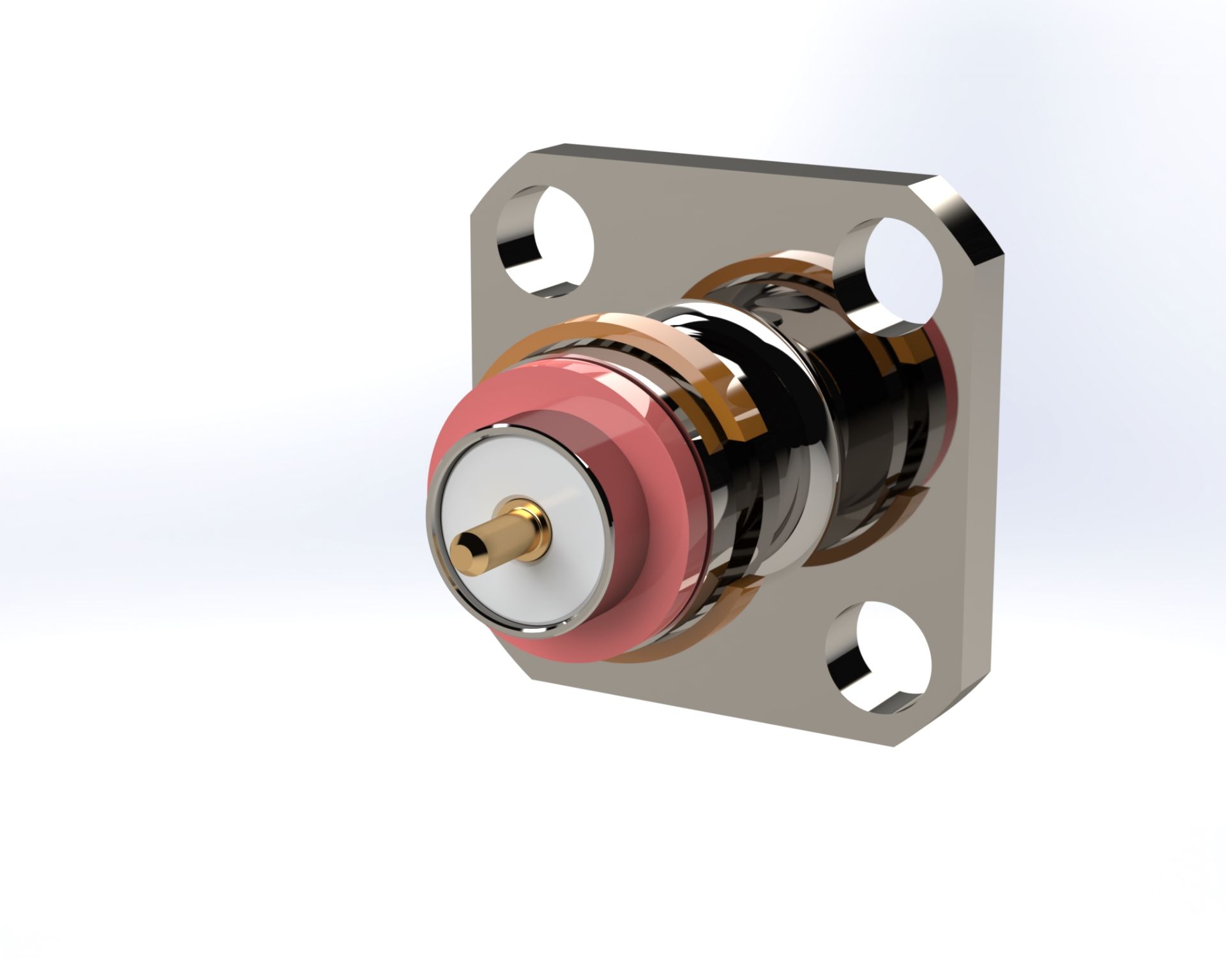

SMA Male Straight 4-Hole Field Replaceable Connector (.036)

The SSMA Male Straight 4-Hole, Field Replaceable (.036) from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: 5982-1CCSF

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Impedance	50 ohms
Dielectric Material	PTFE Teflon
Operating Temperature	-65°C to +125°C
Insertion Loss	.03 √f(GHz)
Frequency	18 GHz
Contact Termination	Field Rep.
Housing Finish	Passivate
Gender	Male
Body Orientation	Straight
RF Series	SMA
RF Connector Specifications
Mounting Style	4 Hole PNL.
Hermetic	No
Body Plating	Gold
Termination	Field Rep.
Center Contact Plating	Gold
Center Contact Material	BeCu
Voltage	335 Vrms max @ sea level, 150 Vrms @70,000ft
Mating Cycles	500 Cycles
Body Material	303 SST
